3P Instruments
mixSorb S Series

Breakthrough Curve Analyser

  • In-situ sample preparation up to 400 °C
  • Fully automated control via PC by using mixSorb Manager
  • Up to 4 high precision mass flow controllers

Download
brochure    Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

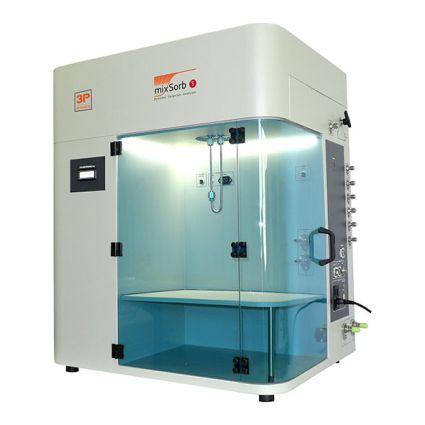

mixSorb S breakthrough curve analyser

The mixSorb S breakthrough curve analyser provides unique capabilities to investigate novel materials, like MOFs, COFs etc. by mixed gas adsorption. Novel materials are in the focus of research in recent last years. These materials can have very high selectivities due to their extraordinary surface chemistry and have to be investigated by mixed gas sorption for a deeper understanding of their sorption behaviour.

In contrast to the mixSorb L series, the mixSorb S series is designed for very small sample amounts (powders). Especially R&D groups have now the possibility to measure newly synthesized materials by complex dynamic sorption processes in a wide field of different gas- and gas/vapor-mixtures by using different parameters like pressure, temperature gas velocity/dwell times, cycle tests and much more. These experiments allow getting data, next to the effective adsorption performance, of kinetics, co-adsorption phenomenon or displacement effects, sorption selectivities, data of gas mixture adsorption and heat balance of the sorption process.

By using the available vapor option it is possible to work up to 2 completely independent evaporators to form fully automated and individually gas/vapor mixtures. These data allow a profound look at the co-adsorption phenomenon or displacement effects.

The related modelling software 3P sim made it possible to calculate and to modify pure gas isotherms as well as breakthrough curves and to calculate the behaviour of gas/vapor-mixture equilibria.

  • Key Features

    • Determination of breakthrough curves
    • Investigation of co-adsorption and displacement
    • Determination of sorption selectivity
    • Estimation of applicability of synthesized materials in technical processes
    • Dynamic adsorption and desorption experiments
    • Determination of single- and multi-component adsorption data
    • Investigation of kinetic performance of novel materials
    • In-situ sample preparation up to 400 °C
    • Fully automated control via PC by using mixSorb Manager
    • Automated regulation of the adsorber pressure up to 8 bar
    • Up to 4 high precision mass flow controllers
    • Automated built-in gas and gas/vapor mixing
    • Measurement of inlet and outlet gas composition
    • Tempering of sample cell by thermostat automatically
    • Monitoring of pressure drop along the sample cell
    • Built-in Thermo Conductivity Detector (TCD); optional gas analysis via interfaced Mass Spectrometer
    • Safety guard sensor for flammable gases for automatic shut down
    • Enhanced Safety by intelligent illuminated workspace

  • Techniques

    Vapour Adsorption

    Mixed Adsorption of Gases

    Breakthrough Curves

  • models

    Model

    S

    		S ecoS ambientSHP eco

    SHP

    Pressure range

    0.1 – 8 bar

    		0.1 – 8 bar0.1 bar – ambient0.1 – 35 bar

    0.1 – 68 bar

    No. of MFCs

    2 – 4

    Required inlet pressure

    15 bar

    		15 bar15 bar85 bar

    85 bar

    No. of Evaporators

    Up to 2

    Pressure control

    Yes

    		YesNoYes

    Yes

    Simulation Software

    Incl.

    		OptionalIncl.Optional

    Incl.

    Gas sensor

    Yes

    		NoYesNo

    Yes

    TCD

    Incl. 13 factory calibrations

    		Incl. 1 factory calibrationIncl. 13 factory calibrationsIncl. 1 factory calibration

    Incl. 13 factory calibrations

    Sample bed temperature sensors

    Up to 4

    Sample loading

    < 0.1 cm³ – 5 cm³, customized adsorbers on requests

    Temperature range heating mantle

    Ambient – 400 °C

    Temperature range circulator bath

    -20 °C – 90 °C
