3P Instruments
Meso Series

Physisorption Analysers

  • One (3P meso 112), two (3P meso 222) or four (3P meso 400) independent analysis stations
  • Single-/Multipoint-BET-surface area determination (DIN 66131, ISO 9277)
  • Real data down to 10nm

Download
brochure
   Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

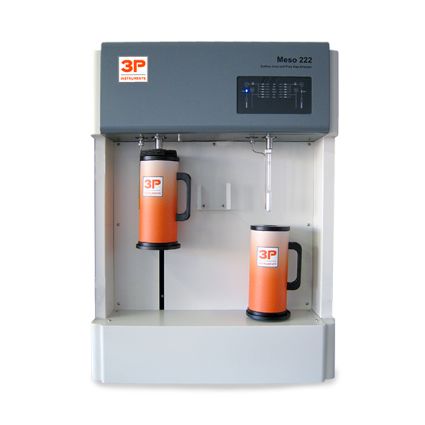

3P Meso Series – Physisorption Analyser

The 3P meso series of Physisorption Analysers offers fully automated volumetric sorption analysis with Nitrogen and other non-corrosive gases (e.g., CO2, Ar, Kr, H2, O2, CO, NH3 or CH4) on one, two or four analysis stations, respectively. It allows the characterisation of mesoporous materials at a minimum of space requirements.

The 3P meso 112 is capable of measuring one sample while at the same time carrying out an in-situ degassing of a second sample. At the end of both the analysis and the degassing process, the heating mantle is switched with the dewar and the analysis continues on the second sample. Alternatively, both stations can be used for sample activation.

A two-station analysis setup with integrated sample preparation is also available with the model 3P meso 222. This system allows simultaneous analysis of two samples.

The 3P meso 400 is a compact sorption analyzer with four completely independent analysis stations for the determination of BET surface area, total pore volume and pore size distributions of meso- and macroporous materials. Each analysis station can be programmed individually and started at any given time. This is achieved by four independent dosing volumes and without any time loss.

  • Technical Specs

    • One (3P meso 112), two (3P meso 222) or four (3P meso 400) independent analysis stations
    • Integrated in-situ sample degassing and independent manifold volumes with individual pressure sensors
    • Besides Nitrogen, other adsorbates are possible such as CO2, Ar, Kr, H2, O2, CO, NH3 or CH4
    • Software-assisted presentation of isotherms and kinetic data (equilibrium pressure vs. Time)
    • Static-volumetric analysis setup
    • State-of-the-art internal pressure regulation
    • Single-/Multipoint-BET-surface area determination (DIN 66131, ISO 9277)
    • Langmuir surface area
    • Adsorption and desorption isotherms
    • Total pore volume and average pore radius
    • NLDFT (density functional theory)
    • Mesopore size distribution according to BJH (DIN 66134) and DH method
    • Micropore analysis (DIN 66135) according to t-plot, Dubinin-Radushkevich, Horvath-Kawazoe and Saito-Foley method
  • Techniques

    BET Surface Area

    Gas Adsorption

  • Applications

    CO2 Absorption Study

    Porous Materials

    Micropore Absorption

    Surface & Pore Structure

    Ultra-micropores

    Adsoptives

    Micropores

    Isotherms

Not sure if it’s the right instrument?

No worries, send us a sample and we will test it for you

Send a sample
