Mageleka
MagnoMeter XRSTM

Particle Suspension Characterisation Analyser

  • Remote operation for controlled or hazardous substances
  • Direct Digital Synthesis technology
  • Simple and intuitive software

Download
brochure    Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

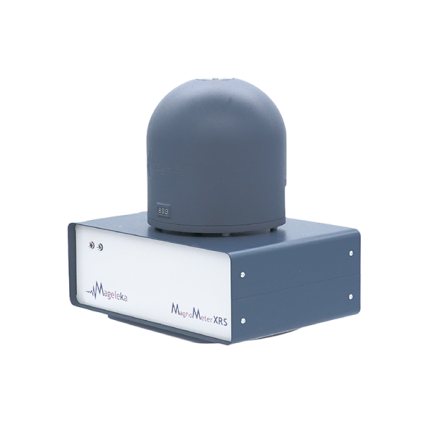

MagnoMeter XRS – Particle Suspension Characterisation Analyser

The MagnoMeter XRS™ suite of instruments provides unmatched functionality and unparalleled particle suspension characterisation analyser, at any stage of the formulation or manufacture process, across any industry.

Mageleka’s flagship instrument is the MagnoMeter XRS™ RelaxoMeter, a powerful and versatile next-generation benchtop low-field NMR spectrometer that provides fast, accurate, particle suspension characterisation and solid-liquid interface analysis of dispersions and liquid-liquid interface analysis of emulsions. It is ideal for fundamental formulation R&D, rapid QC of incoming raw materials, and QA of final commercial products.

The RelaxoMeter Flow is ideal for use with heterogeneous suspensions where batch sampling is problematic. Use it to monitor milling processes in real time, and under industry-relevant conditions. Also for investigation of the impact of continuous addition of chemical reactants, and for laboratory studies of process control.

The SedimentoMeter is a simple benchtop device for: determining settling/sedimentation rates of slurries, investigating particle aggregation (coagulation/flocculation), and measuring fast or slow kinetic processes and mechanisms. It is ideal for accelerated aging and shelf-storage studies

  • Key Features

    Separate magnet/probe assembly pod

    Easily exchangeable for different nuclei and/or higher field strength magnets

    Highly customizable pulse sequencing

    Phase cycling, composite pulses, two channel RF, and 1D, 2D, and 3D shaped gradients

    Remote operation

    For use in controlled, hazardous, or radioactive environments.





    Uses regular length NMR tubes

    Four diameters available, from 2mm (highest resolution) to 10mm (lowest resolution)

    Simple and intuitive software

    Easy to use and upgrade PC software and a dedicated dual core ARM9 processor running Debian

    All industry relevant concentrations

    Measure materials or products at any stage of the formulation and manufacturing process

  • Applications

    Raw Materials

    Ink-jet

    API Solution

    Pigment Dispersion

    Cosmetics

  • Capabilities

    Separate magnet/sample probe assembly

    The magnet/sample probe assembly – called a MagnoPod™ – is a separate, temperature-controlled unit. This practical feature allows the MagnoMeter XRS™ devices to be operated remotely. Each unit can accommodate multiple MagnoPods™, which adds flexibility and extends the scope of any application. The MagnoMeter XRS™ devices are ideal for use in controlled or hazardous environments, and can be integrated into production equipment. The small footprint saves space in any lab, and the low weight makes it easily portable.

    By direct digital synthesis (DDS)

    At the heart of the MagnoMeter XRS™ is state-of-the-art NMR technology (patent-pending). It features Direct Digital Synthesis, which incorporates a software defined radio device. Radio frequency generation and detection is done digitally; there are no analogue multiplexing steps in detecting the NMR signal. This next-generation technology provides the MagnoMeter XRS™ devices with exceptional resolution of complex solid-liquid and liquid-liquid formulations at any concentration – and at significantly faster speeds than the competition.

    MagnoSoft™: simple and intuitive software

    Measurements using the MagnoMeter XRS™ devices are based on the simple and intuitive MagnoSoft™ program, and operation requires minimal training and expertise. The MagnoSoft™ program can control multiple MagnoPods™ from one central control unit, which adds incredible flexibility and eliminates the need to purchase multiple instruments.

    Highly-customisable pulse sequencing

    The MagnoMeter XRS™ features phase cycling, composite pulses, and two-channel radio frequency and 3D shaped gradients, all customizable by the pulse programming interface of the MagnoSoft™ program. This makes possible 1D, 2D, and 3D imaging, robust self-diffusion measurement (10-9 to 10-13 m2s-1), droplet sizing analysis, polymer characterization in solution and melts, and more.

    Uses regular length NMR tubes

    With the MagnoMeter XRS™ there is no need to change the way you work – or the type of NMR tube you use. It is challenging to fill a narrow NMR tube with a highly viscous fluid, so larger-diameter tubes are needed. Conversely, when sample volume is very low, or higher resolution is needed, a narrow-diameter tube is ideal. Accordingly, the MagnoPod™ can accommodate four different diameter NMR tubes: 2 mm (highest resolution), 4 mm (standard resolution), 8 mm (lower resolution) and 10 mm (lowest resolution).

    Measurements have never been easier

    The MagnoMeter XRS suite of products offers the user a wide degree of flexibilty to meet their individual need. Do you need to measure samples at multiple locations, or analyse multiple nuclei? The MagnoPod™ is easily exchangeable, and convenient additional pods are available for a wide range of nuclei (including 7Li, 19F and 32P). Multiple MagnoPods™ can be connected and driven by one controller, all run by the powerful MagnoSoft™ program. Sometimes the difference between success and failure is a matter of degrees. All MagnoPods™ come standard with a temperature exchanger unit installed. An optional upgrade to a Peltier controlled system is available. Need more resolution? Higher field magnets are available. Talk to us, and we can tailor the MagnoMeter XRS™ to meet your specific needs.

Not sure if it’s the right instrument?

No worries, send us a sample and we will test it for you
