Porometer

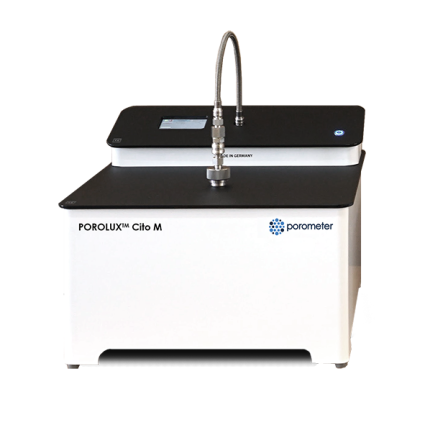

Porolux Cito
Pore Size Analyser
- Gas-liquid technology
- Designed to deliver fast and reproducible results
- For pore sizes down to 13 nm
-
Key Features
Fast, reliable and reproducible measurements
Our POROLUX™ Cito technology stands for fast and reproducible measurements of through pores in filtration and separation media.
The instruments determine the first bubble point (largest pore-ASTM F-316), mean flow pore size, smallest pore, pore size distribution,cumulative flow distribution & gas permeability with the highest accuracy in the whole pressure range.
Measurement after measurement, our porometers get you the most accurate and reliable results on the pore sizes of your materials.
Technology and quality combinedThe POROLUX™ Cito series stands out of the crowd with its intelligent sensor switching. This ensures that the most suitable sensor is always engaged throughout the entire measurement.
As a result, very accurate measurements are obtained. Additionally, the porometers allow taking up to 400 real (measured) data points, resulting in the best possible resolution.

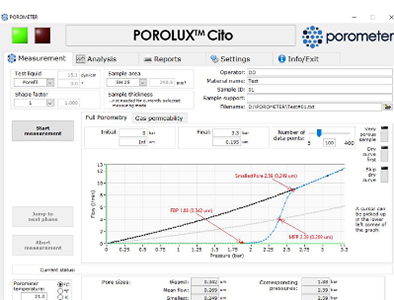

Very intuitive and easy to use softwareEven though our software is powerful and comprehensive, it’s also very intuitive and easy to use.
By allowing to change many parameters with a click of the mouse, the software enables its many users to tune the measurement to their exact needs. Additionally, the software, with built-in intelligence, gives the user access to many advanced functions, such as the re-evaluation function and the observation window.
Furthermore, our porometers are equipped with an onboard ethernet port allowing remote access via the internet for installation, support, and diagnosis.
Easily to understand and presentable outputWith one click of the button, results are exported in word, excel or pdf. The Porometer software makes it very easy to present multiple measurements next to each other, allowing for a straightforward comparison between different filter media.

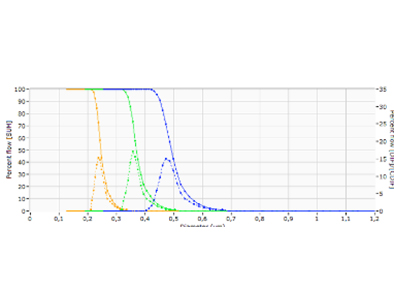

Thanks to the adjustable scales, graphs such as wet and dry curve and pore size distribution are presented in a very clear and sophisticated manner.
-
Technical Specs
POROLUX™ Cito Cito L Cito M Cito Technique Gas-liquid porometry Gas-liquid porometry Gas-liquid porometry Measurement method Pressure Scan Pressure Scan Pressure Scan Max pressure 1.5 bar/22 psi 7 bar/100 psi 35 bar/500 psi Min pore (1) 0.427 µm 0.091 µm 13 nm Max pore (1) 500 µm 500 µm 500 µm Max flow 200 l/min 200 l/min 200 l/min Bubble point BP x-ml and BP pCF (*) BP x-ml and BP pCF (*) BP x-ml and BP pCF (*) Dimensions (DxWxH) 530x530x560 mm 530x530x560 mm 530x530x560 mm Weight 30 kg 30 kg 35 kg (1) Depending on the wetting liquid.
(*) BP x-ml is the bubble point measured at a user-defined flow rate. BP pCF is the bubble point measured as a user-defined percentage of the cumulative flow.
-
Accessories

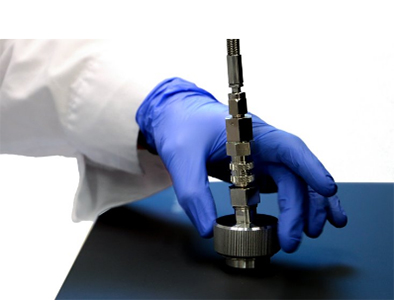

Universal sample holder 3 in 1
Sample holder 3 diameters in 1 (13, 25 and 47 mm).
Hollow fibre sample holder
Specially designed sample holder for hollow fibres, including 5 sealant rings.
Sample holder of 25 mm diameter for thicker samples
External sample holder for samples of thickness up to 10 mm.
Customer specific solutions
Porometer can also create customer specific sample holders to meet special requirements, such as measuring thick samples, samples with larger diameters, working with assembled filter setups, etc.
-
Applications
Membranes
Nonwovens
Ceramics
Metals
Paper
Not sure if it’s the right instrument?
No worries, send us a sample and we will test it for you
Send a sample-
