Porometer
Poroliq
Liquid-Liquid Porometer
- Liquid-liquid technology
- Designed to measure the smallest pores in the most fragile samples
- For pore sizes down to 2nm
- Offers Porosity Measurement
-
Key Features
Complete and accurate measurements

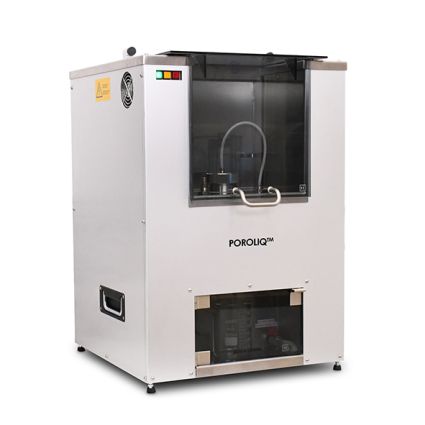

The POROLIQ™ – widely regarded as the most accurate liquid-liquid porometer on the market – is very well suited to detect very small pores, as well as to characterize pressure sensitive membranes such as hollow fibers.
The instrument will first detect the opening of a pore at a certain pressure but will wait until all pores of the same diameter are completely opened before accepting the data point. This method results in a very accurate pore size measurement, down to 2 nm, and allows to calculate the true pore size distribution.
Technology and quality combined
All our porometers are designed and manufactured in-house, enabling us to equip our instruments with the best and latest technology.
The POROLIQ™ stands out of the crowd with its intelligent sensor switching, making sure that throughout the entire measurement the most suitable sensor is always engaged, resulting in very accurate measurements. Additionally, the Porometer is equipped with a highly advanced, multilevel stability algorithm for characterisation of complex pore structures. A more advanced and representative characterisation of your through pores is not possible!
Very intuitive and easy to use software
Even though our software is powerful and comprehensive, it’s also very intuitive and easy to use.
By allowing to change many parameters with a click of the mouse, the software enables its many users to tune the measurement to their exact needs. Additionally, the software, with built-in intelligence, gives the user access to many advanced functions, such as the re-evaluation function and the observation window.
Furthermore, our porometers are equipped with an onboard ethernet port allowing remote access via the internet for installation, support, and diagnosis.
Easily to understand and presentable output
With one click of the button, results are exported in word, excel or pdf. The Porometer software makes it very easy to present multiple measurements next to each other, allowing for a straightforward comparison between different filter media. Thanks to the adjustable scales, graphs such as wet and dry curve and pore size distribution are presented in a very clear and sophisticated manner.
-
Technical Specs
POROLIQ™ AQ ML Measurement mode Full porometry Full porometry Method Pressure step/stability Pressure step/stability Max pressure 40 bar/580 psi 40 bar/580 psi Min pore (1) 2 nm 2 nm Max pore (1) 0,3 µm 1 µm Flow range <1 μl/min – 10 ml/min 1 μl/min – 10 ml/min Dimensions (DxWxH) 510x510x760 mm 510x510x760 mm Weight 80 kg 80 kg Displacement liquid water-based multiple liquids (1) depending on the wetting liquid
-
Accessories
Horizontal hollow fiber sample holder
Specially designed inlay for 25 mm sample holder for horizontal measurements of hollow fibers.
Vertical hollow fiber sample holder (picture)
Specially designed inlay for 25 mm sample holder for vertical measurements of hollow fibers (pack of 5 pcs).
Deep sample tablet
Special sample tablet designed to host an inlay and a sample.
Metal inlay
For the sample holder for flat sheet sample (inner diameter 4 or 8.8).
-
Applications
Membranes
Hollow Fibres
Not sure if it’s the right instrument?
No worries, send us a sample and we will test it for you
Send a sample-
