Affinite
P4SPR

Surface Plasmon Resonance

  • Dual and Quad inlet modules
  • Fast assay development
  • Ideal for intermediate screening

Download
brochure
   Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

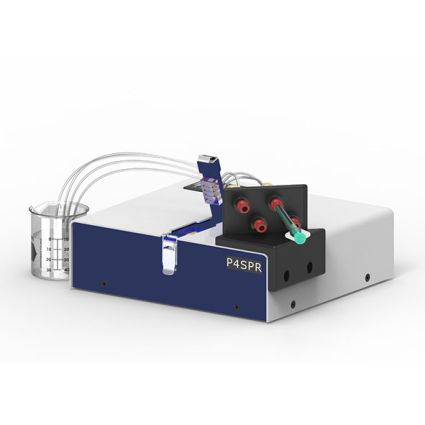

The P4SPR utilises Surface Plasmon Resonance (SPR) technology to deliver precise, real-time measurements of molecular interactions. This Surface Plasmon Resonance system is ideal for studying binding kinetics, affinity, and concentrations without the need for labels. By leveraging advanced SPR technology, the P4SPR enhances biosensing accuracy and sensitivity, making it an invaluable tool for research in fields like biochemistry, pharmaceuticals, and material science.

Core Technology

Basic thin film Surface Plasmon Resonance (SPR) found in most benchtop devices capable of detection in complex media such as serum, plasma, cell lysates, or wastewater.

Flexible Design

Adaptable from injection to sensor. Comes with two injection models with multiple options to meet your research needs

Rapid Data Processing

Intuitive software providing key data for biosensing and protein interaction characterization in real time.

  • Key Features

    • Thin film-based Surface Plasmon Resonance (SPR)
    • Dimensions: 175 x 155 x 55 mm
    • Weight: < 1.3 kg.
    • USB powered
    • Microfluidic cell min. volume: 50 uL
    • Sensitivity: 2750 nm/RIU
    • Resolution : 1 micro RIU
    • Dynamic range: 1.33 to 1.39 refractive index unit
    • Coefficient of variation on signal: < 0.6%
    • Polychromatic light source
    • P4SPR Control™ graphical user interface
    • ezControl graphic user interface
    • Output data compatible with TraceDrawer™
    • CE Marked
  • Dual Inlet Module

    Best for assay development

    • Triplicate sample channel measurement with reference channel
    • Connect to Affinité’s injection loop side module for kinetics analysis
  • Quad Inlet Module

    Best for intermediate screening

    • Simultaneous comparison of four different samples at once.
    • Fewer chip consumable usage.
  • Applications

    Gene Regulation

    Environmental Waters

    Protein-small molecule interaction

    Immunosensing

    Antibody QC

    Protein-Protein

    Protein

    Vaccine
