Orflo

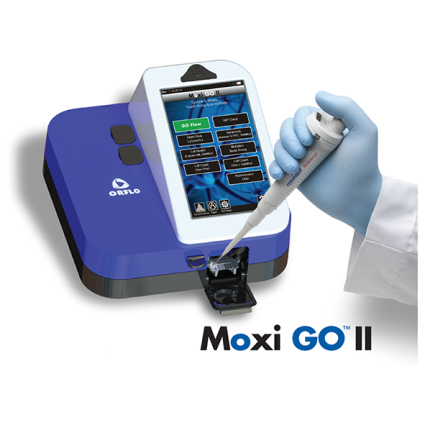

Moxi GO II

Mini Automated Cell Analyzer

  • Small footprint enables portability and convenience.
  • Fast (<10 sec) test times and no warm-up periods ensure rapid results.
  • Intuitive, touchscreen design for ease of use.
  • No cleaning or maintenance required.

Download
brochure    Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

Next Generation Coulter-Principle Cell Analyser.

The Orflo Moxi GO II  Cell Analyser is the best solution for cell counting due to its precision, speed, and ease of use. Combining Coulter Principle-based sizing with fluorescence-based viability, it offers highly accurate and reproducible results. Its intuitive interface and automated processes ensure rapid and user-friendly operation, making it ideal for both novice and experienced users. The Moxi GO II’s compact design and high-throughput capabilities make it perfect for various applications, including research labs and biotech industries, providing consistent and reliable cell analysis.

  • Overview

    Combines the Coulter Principle (for highly-accurate cell counts and exact, volumetric cell sizing) with a 488nm laser and two PMT fluorescence detection channels (for cell health assays, robust CAR-T monitoring, cellular response profiling, and immuno-profiling).

    The Moxi GO II’s new Auto-Gating feature will analyse results in an accurate, repeatable way to provide the most consistent results — presented in a simplified new Data Summary page. The new Batch Mode feature allows you to run multiple tests of the same sample type. It will auto-find live and dead cell populations, eliminating user-to-user variability.

  • Technical Specs

    Id

    MXG102
    Included accessories

    USB power cord, US style USB power adapter, and Type S+ cassette pack
    AC power type

    110 VAC
    Applications

    Mulitplexed Bead ELISA’s
    In Cell Westerrns
    In Cell Protein Quant
    GFP
    Gold Standard Cell Count and Viability
    Mito Potential
    ROS
    Phagocytosis
    Battery Type

    Rechargeable 3.7 V, 4400 mAh lithium ion
    Cassette types

    Type S+
    Cell Particle Concentration Range

    5,000 – 1,000,000 cells/mL Type S+
    Cell types tested

    HEK-293
    HeLa
    PC12
    CD3+T
    CHO-K1
    Cos-7
    HepG2
    Hybridoma
    Jurkat E6-1
    K562
    MCF7
    Mesenchymal SC
    Monocyte
    Mouse ESC
    NIH 3T3
    PBMC (cultured)
    Red Blood Cells (RBC)
    L5178y
    C. albicans (Yeast)
    S. cerevisiae Vin 13 (Yeast)
    S. cerevisiae X5 (Yeast)
    Wine Yeast (natural fermentaion)
    S.cerevisiae (Baker’s Yeast
    Safale US-05 Yeast
    Data output formats

    FCS 3.1, screen shots (.bmp), CSV
    Data storage capasity

    4Gb
    Display resolution

    800 x 480 color touchscreen
    Excitation wavelengths

    488nm
    In British units

    10 lbs
    Intended use statement

    For Research Use Only. Product is not for use in diagnostic procedures
    Laser colour

    Blue
    Measurable dynamic range

    3 – 27 microns Type Type S+
    4 – 35 microns Type MF-M
    Measurement time

    10 seconds Type S+
    MPI cell health ratio

    Yes (Size histogram only)
    Number of detection channels flow parameters

    2 color, 1 size, 1 forward extinction
    Number of PMTs

    2
    Optical detection range

    525/45nm (e.g. FITC, GFP) and 561nm/LP (e.g. PE, RFP)
    Particle size detection method

    Impedimetric (Coulter Principle)
    Platform

    Open platform: 561nm/LP (PI, PE, DS Red, Sytox Orange, 7 AAD, Nile Red, Rhodamine Red, Sun Coast Yellow, PE/Cy5), 525/45nm (FITC, GFP, Alexa Fluor 488nm, Calcein)
    Pre-programmed tests

    Mulitplexed Bead ELISA’s
    In Cell Westerrns
    In Cell Protein Quant
    RFP
    Gold Standard Cell Count and Viability
    Mito Potential
    ROS
    Phagocytosis
    Resolution histogram bins

    1000
    Sample type

    Beads
    Cell Preparations
    Sample volume

    60 µL
    Supported connectivity

    USB on-the-go
    Useable cell volume

    14 – 10,306 fL Type S+
    14 – 22,449 fL Type MF-M
    Weight

    4.53 kg

  • How it works

    The operating principle behind the Moxi GO II Cell Analysers is a unique combination of Coulter-style cell size determination with simultaneous fluorescence detection. As cells flow single file through the microfabricated single-use flow cell the volume of each particle is measured at the exact same time as their primary fluorescence is measured using a 488nm (MXG102) solid state diode laser with and with the following emission filters – 525/45nm (e.g. FITC, GFP, Alexa 488) and 561nm/LP (e.g. PE, RFP). Thousands of cells are measured in the 10 second read time and the data are plotted in a gradient density scatter plot as Cell size (volume) vs. Fluorescence (PMT voltage). Gating is easily performed on the unit using a interactive touch display, and the resulting live/dead ratios are automatically calculated (depending on the app selected). The analyzed data can also be displayed as a two color size histogram. Total volumetric cell counts are automatically determined for each test by precisely measuring the volume of fluid being analysed.

    Step 1: Select desired app, insert the cassette and close the doors.


    Step 2: Once auto-alignment is complete, open the top door and pipette 60μl of labelled sample into the cassette.
    Step 3: Close the top door, assays run automatically and results are generated in ~10 seconds. Note: Each cassette holds 2 tests. When Sample 1 is complete, simply re-insert other end of cassette into Moxi GO, and load Sample 2.
    Data

    Data can be displayed on the unit in both a color density scatter plot and a two color size histogram. Simply drag gates using the intuitive touch display for instant live/dead ratio calculations and each of the gated volumetric cell counts (i.e., total population, live population, and dead population (Viability App). The mean cell volume for the gated populations is also automatically displayed on the unit. Results from each test are stored in the standard FCS 3:1 format and can be viewed using any Cell Analysis analysis package. The actual Moxi Flow screenshots from each assay (dot plots and histograms) are also stored in bitmap format for use online. Hundreds of files can be stored on each Moxi GO and are easily transferred to a Mac or PC using USB on-the-go. No aditional software is required.

  • Applications

    Apoptosis Monitoring

    Transfection Monitoring

    Yeast Monitoring in Brewing

    Immuno-phenotyping

    Mitochondrial Membrane

    Reactive Oxygen Species
