3P Instruments

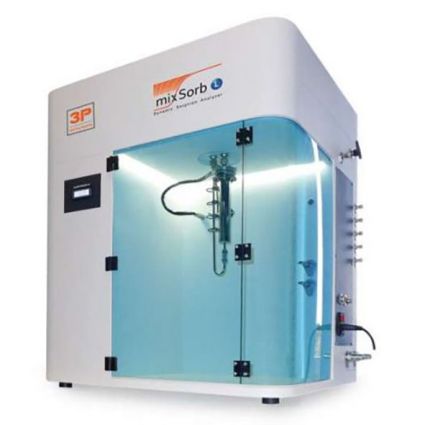

mixSorb L Series
Breakthrough Curve Analyser
- Broad temperature reange
- Broad pressure range
- Investigate arbitrarily complex dynamic sorption processes
-
Key Features
- Determination of breakthrough curves
- Investigation of kinetic performance of adsorbents
- Investigation of co-adsorption and displacement
- Determination of sorption selectivity
- Reasonable downscaling of technical separation
- Dynamic adsorption and desorption experiments
- Determination of single- and multi-component adsorption data
- In-situ sample preparation up to 400 °C
- Fully automated control via PC
- Automated regulation of the adsorber pressure up to 10 bar
- Up to 4 high precision mass flow controllers
- Automated built-in gas mixing
- Measurement of inlet and outlet gas composition
- Pre-tempering of inlet gas and tempering of adsorber
- Monitoring of inlet gas temperature
- Determination of heat profiles in the adsorber with four temperature sensors
- Monitoring of pressure drop along the adsorber
- Built-in Thermo Conductivity Detector (TCD)
- Optional gas analysis via interfaced Mass Spectrometer
- Safety guard sensor for flammable gases for automatic shut down
- Enhanced Safety by intelligent illuminated workspace
-
Models
-
Techniques
Vapour Adsorption
-
Accessories
Optional small adsorber column
- (d = 1 cm, h = 6 cm) with temperature probe
- 1 temperature sensor
Vapor option for mixSorb L
- to supply gas-/vapor mixtures
- possibility to transport liquid mixtures in the evaporator
Vacuum Option
- Allows connection of a vacuum pump for sample pre-treatment or measurment atlower pressures or for evacuation of the adsorber < 1 bar (membrane- or scroll-vacuum pump)
Mass Spectrometer
- for investigation of ternary or quaternary gas mixtures
- different Mass Spectrometer are available
Not sure if it’s the right instrument?
No worries, send us a sample and we will test it for you
