Bettersize
Bettersizer ST

Particle Size Analyser – Wet Analysis

  • Size range 0.1 – 1,000 µm
  • Low maintenance
  • Cost-Efficiency

Download
brochure
   Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

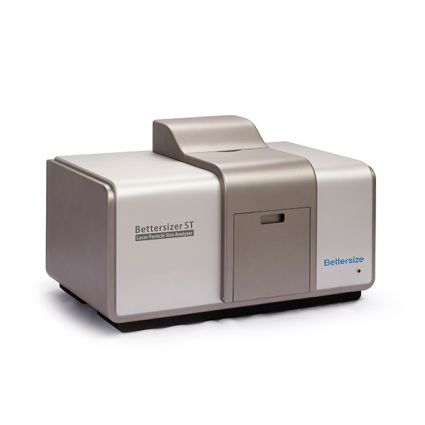

The Bettersizer ST is a fully automated and integrated particle size analyser with a smart operation system by wet dispersing. Optimised for the industrial quality control process, the Bettersizer ST provides stable and reliable testing results with minimum user intervention. The compact footprint saves valuable workspace for factories and laboratories.

Particle Size Analyser you can TRUST

The Bettersize Bettersizer ST Particle Size Analyser ensures reliable wet analysis for quality control processes. Utilising laser diffraction, it provides accurate and reproducible measurements. Ideal for various industries, the Bettersizer ST guarantees precise particle size distribution, enhancing product consistency and quality assurance

  • Key Features

    • Dispersion type: Wet
    • Size range: 0.1 – 1,000µm
    • Robustness
    • Ease-of-Use
    • Cost-Efficiency
    • Compact design
    • Low maintenance
    • Dual lens system
    • Automatic alignment functionality
    • Automatic measurement with SOP
  • Technical Specs

    Particle Size Distribution

    Suspensions, emulsions, dry powders

    LPrinciple

    Laser diffraction technology

    Analysis

    Mie scattering theory and Fraunhofer diffraction theory

    Typical measurement time

    Less than 10 seconds

    Measurement range

    0.1 µm – 1000 µm

    Accuracy error

    ≤1% (NIST certified standards)

    Repeatability error

    ≤1% (NIST certified standards)

    Number of size classes

    ≤100 (adjustable)

    FOptical system

    Patented DLOS (Dual Lens Optical Systems)

    Laser

    High-power fiber semiconductor laser (10 mW/635 nm)

    Detector

    86 photodetectors (forward, lateral and backward arrangements)F

    Measuring angle

    0.031 – 159°

    Circulation speed

    300 – 2500 r/min

    Circulation flow rate

    3,000 – 8,000 mL/min

    Ultrasonication

    Dry run protection, Max 50 W (adjustable)

    Circulation tank capacity

    600 mL

    Conformity

    21 CFR Part 11, ISO 13320, CE

    Reports

    Customizable reporting

    Dimensions (L x W x H)

    660 x 420 x 320 mm

    Weight

    38 KG

    Voltage

    DC 24V, 221 W

    Computer interface

    At least one high-speed USB 2.0 or USB 3.0 port required

    Operating system

    Windows 7 or higher

    Hardware specification

    Intel Core I5, 4GB RAM, 250GB HD

  • Applications

    Lithium-ion Battery

    Calcium Carbonate


    Pesticides

    Ceramic Powder


    Abrasives


    Gypsum


    Pesticides 2

  • Technology

    Laser Diffraction

Not sure if it’s the right instrument?

No worries, send us a sample and we will test it for you

Send a sample
