Bettersize
Bettersizer S3 Plus

Particle Size and Shape Analyser

  • 0.01 – 3,500 µm (laser system)
  • 2 – 3,500 µm (image system)
  • 0.5x and 10x cameras
  • Rapidly generates results in 10 seconds

Download
brochure    Request
quote

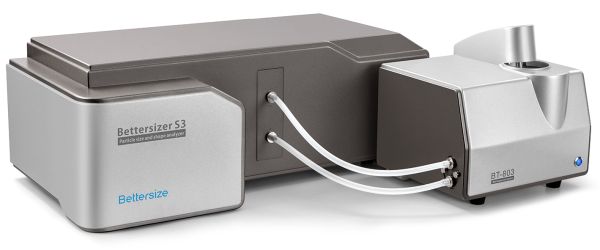

Bettersizer S3 Plus+BT-803

Strive for excellence in all you see.

The Bettersizer S3 Plus particle size and shape analyser combines laser diffraction and dynamic image analysis in one instrument. It can measure the size and shape of particles from 0.01 µm to 3500 µm. Its exceptional sensitivity for either ultrafine particles or oversized particles, and unsurpassed resolution, make it the most powerful size and shape analyser for enthusiastic researchers who conduct top scientific research.

  • Features and Benefits

    • Measuring range is 0.01 – 3,500µm (laser system), 2 – 3,500µm (image system)
    • Combining laser diffraction and dynamic image analysis in one instrument, obtaining size and shape results simultaneously
    • Patented DLOI (Dual Lenses & Oblique Incidence) system enable the measurement of ultrafine particles down to 0.01 µm
    • Dual-camera imaging technology can show particles images in real time and detect oversized particles up to 3500 µm
    • Refractive index measurement determines the refractive index of unknown samples and improves te reliability of results
    • Compliance with 21 CFR Part 11, ISO 13320, USP <429>, CE

  • Performance

    1) High Resolution and Sensitivity

    The Bettersizer S3 Plus achieves exceptional resolution and sensitivity for particle size measurements. The DLOI system allows the size distributions of polydisperse samples to be determined precisely, and the size changes of products to be detected sensitively.

    BioLector Microbioreactor

    2) Multiple Shape Parameters

    An example of additive manufacturing for shape analysis using the Bettersizer S3 Plus is shown below. A representative number of individual particles are recorded from two AlSi10Mg samples, and the number-weighted aspect ratio and circularity are evaluated in compliance with ISO standards. (Adapted from F. Schleife, C. Oetzel. Chem. Ing. Tech. 93.8 (2021): 1199–1203.)

    BioLector Microbioreactor

    3) Oversized Particle Detection

    Laser diffraction in combination with image analysis can sensitively detect oversized particles that are statistically underrepresented within a wide-distributed sample, such as oversized grains, agglomerates, air bubbles, etc. An example of an off-specification abrasive is displayed below. The Bettersizer S3 Plus confirms the presence of oversized particles, by showing a size peak at around 120 μm and the images of overly coarse particles.

    BioLector Microbioreactor

    4) Analysis of Samples with Extremely Broad Distributions

    BioLector Microbioreactor

  • Technology

    Image Analysis

    Laser Diffraction

  • Applications



    Soy Milk

    Advanced Ceramic Products


    Powder Coatings


    Ceramic Agglomerates


    Lithium-Ion Batteries

    Soils and Sediments


    Abrasives


    3D Printing

    Differing Abrasives

  • Specification

    Particle size distribution

    Suspension, emulsion, dry powders
    Particle shape

    Suspension, emulsion, dry powders
    Principle

    Laser diffraction and dynamic image technologies
    Analysis

    Mie scattering theory and Fraunhofer diffraction theory
    Typical measurement time

    Less than 10 seconds
    Measuring range

    0.01 – 3500 μm (Laser System)
    2 – 3500 μm (Image System)
    Accuracy

    <0.5% (NIST certified standards)
    Repeatability

    <0.5% (NIST certified standards)
    Number of size classes
    		 ≤100 (adjustable)
    Feeding mode

    Automatic circulation or semi-automatic circulation
    Special functions

    Refractive index measurement, SOP settings
    Image recognition

    Up to 120 fps, up to 10,000 particles per min
    Optical system

    Patented DLOI (Dual Lenses & Oblique Incidence) System
    Laser

    Polarized light-pumped solid-state laser (10 mW / 532 nm)
    Detector

    96 detectors (forward, lateral and backward arrangements)
    Measuring angle

    0.02 – 165°
    CDC cameras

    0.5x and 10x *
    Image analysis

    1.2 megapixels
    Circulation speed

    300 – 2500 r/min
    Circulation flow rate

    3000 – 8000 mL/min
    Ultrasonication

    Dry run protection, Max 50 W (adjustable)
    Circulation tank capacity

    600 mL
    Conformity

    21 CFR Part 11, ISO 13320, ISO 13322, USP <429>, CE
    Report

    Customizable reporting
    Dimensions (L x W x H)

    820 × 610 × 290 mm
    Weight

    48 kg
    Voltage

    DC 24 V, 50 / 60 Hz, 20 W
    Computer interface

    At least one high-speed USB 2.0 or USB 3.0 port required

    Operating system

    Windows 7 / Windows 10

    Hardware specification

    Intel Core i7, 8GB RAM, 500GB HD, two PCI-E X16 interfaces

    * The Bettersizer S3 Plus is also available in a single camera (0.5x) model. Contact us for more information.

  • Accessories

    Introduction

    The BT-A60 is a durable, automatic and high-throughput sampling system. It delivers maximum laboratory automation for sample measurements, reducing your labor costs while improving productivity and laboratory efficiency. The compact design saves valuable bench space while allowing up to 60 different samples to be measured in a single run. Compatible with Bettersizer S3 Plus and Bettersizer 2600, the BT-A60 offers 24/7 fully automated sample analysis to meet your various analytical applications.

    Features

    • Accurate sample identification
    • Efficient ultrasonic cleaning
    • Up to 60 samples in one click
    • Measurement automation
    • Small footprint
    BioLector Microbioreactor
    BioLector Microbioreactor

    Download
    brochure
